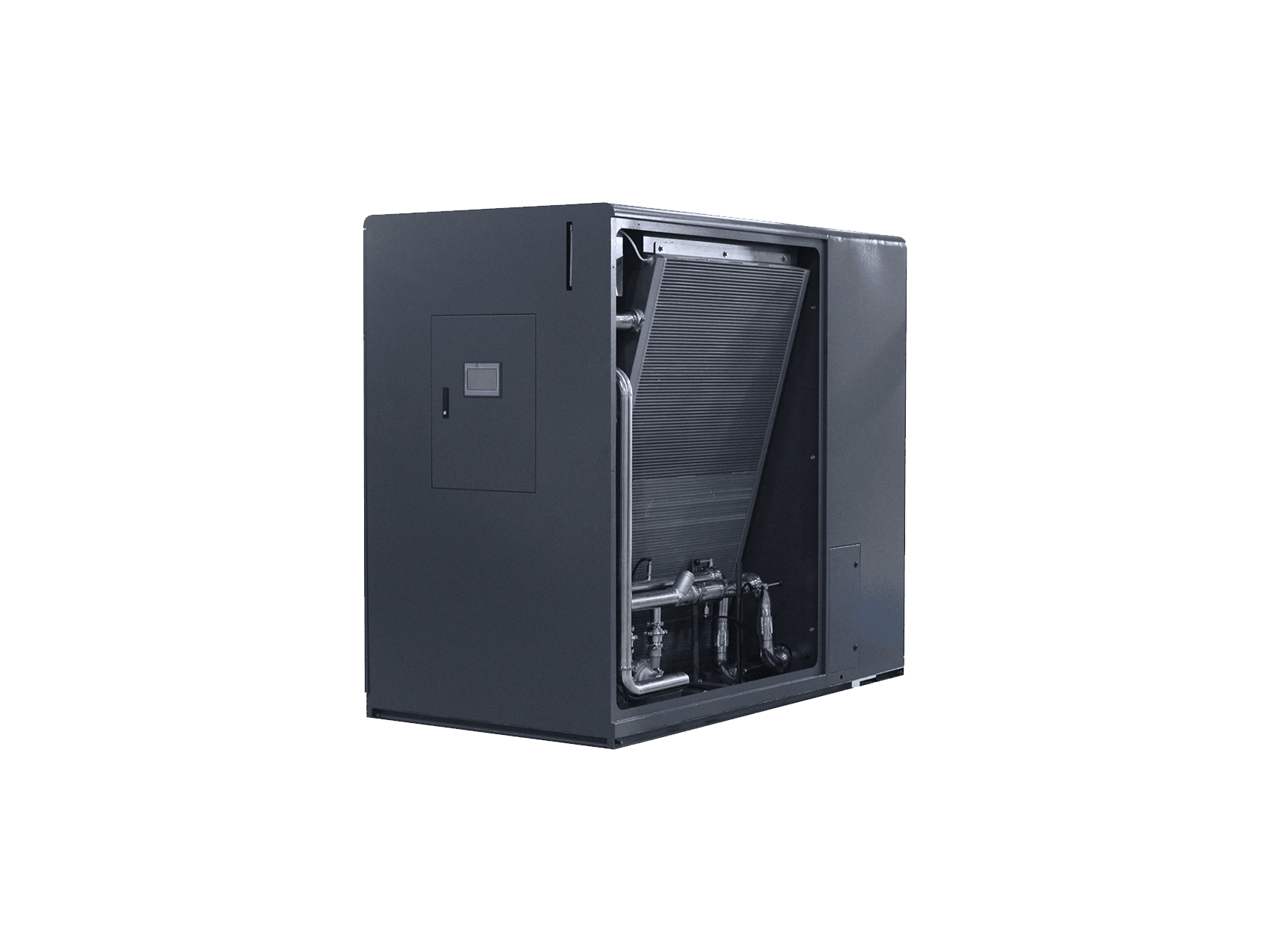

AIO200 – All-in-One 200kW Hydro Cabinet

AIO200 – All-in-One 200kW Hydro Cabinet

The AIO200 – All-in-One 200kW Hydro Cabinet is engineered with a fully redundant and intelligent liquid cooling architecture to ensure continuous and stable operation. The system features dual water pumps in a duty + standby configuration, enabling instant automatic switchover in the event of pump failure, ensuring non-stop operation without downtime. The integrated dry cooler adopts a 200 kW aluminum plate-fin heat exchanger combined with four EC fans, delivering efficient heat dissipation with low noise and high energy efficiency. A 7-inch touch screen HMI provides real-time system visualization and local control. The intelligent control system supports fully automatic variable-frequency constant-temperature operation, with integrated pressure, temperature, and humidity monitoring, as well as fan on/off control, voltage monitoring, and energy metering. The CDU pump station is equipped with stainless steel centrifugal pumps, and all coolant-contact pipelines are made of stainless steel, ensuring long-term corrosion resistance and system reliability. The cabinet includes an integrated PDU with 34 independent Antminer power outputs, supporting one-outlet-per-miner control. For customer power connection, each phase (A/B/C) supports an actual current capacity of no less than 370A, enabling safe and stable high-load operation.

Can house
20 2U/34 antminer

Total Capacity
MAX 200kw

Cooling Fan
200KW

pdf brochure
Get a Quote

OVERVIEW

Item Description
Container Size 2520*1360*2325mm
Cooling Type 200 kW dry cooler
Running miners 20 Whatsminer M63 series or 34 ANTMINER series
Certification UL certification、NEC、NFPA、CCC、CE
Switchgear 1*400A  MCCB
Customization Supported

A compact, low-noise, all-in-one liquid cooling cabinet with redundant pumps, intelligent control, and industrial-grade reliability—designed for continuous mining without compromise.

  • All-in-One Design: Dry cooler + Cabinet + CDU integrated

  • Dual Pump Redundancy: 2 pumps (1 duty + 1 standby), zero downtime operation

  • Cooling Capacity:

    • 200 kW aluminum plate-fin dry cooler

    • 4 × high-efficiency EC fans

  • Intelligent Control System:

    • Automatic variable-frequency constant-temperature control

    • Pressure, temperature, and humidity monitoring

    • Fan start/stop control

    • Voltage and energy consumption monitoring

  • Industrial-Grade Pump Station:

    • Stainless steel centrifugal pumps

    • All coolant pipelines made of stainless steel

  • Integrated PDU:

    • 34 Antminer power cables included

    • One outlet per miner, independently controlled

  • Power Interface:

    • Phase A/B/C current capacity ≥ 370A per phase

  • Low-Noise Design: Suitable for noise-sensitive environments

  • Plug-and-Play Deployment: Minimal on-site installation required

Optional Upgrades

A1 – Air Filter

Metal mesh – durable, lowest cost, low filtration

PU foam – washable, balanced, cheap

MERV 8 – best filtration, highest cost

Modular triangular roof extending 1.5 m on both intake and exhaust sides for insulation and weather protection.

Aluminum alloy adjustable blinds covering up to 90% of the intake side to optimize airflow direction.

Thermal isolation system preventing hot air recirculation and improving cooling efficiency.

Creates a flat top and stable hot-air return path, eliminating airflow short-circuiting.

High-efficiency EC direct-drive fan with higher airflow and factory pre-installation.

Drawer-style expandable structure that allows the cold aisle or hot aisle to be widened as needed.The aisle width can be expanded up to 2.5 meters (≈ 8.2 ft), improving airflow organization and cooling efficiency.

The integrated support canopy can block sunlight and rain and snow, resist wind and rain, extend the service life of the water curtain, and the hinge structure design can be closed directly.
