Supports remote shutdown, remote monitoring of power consumption, voltage, energy usage, and other electrical parameters.

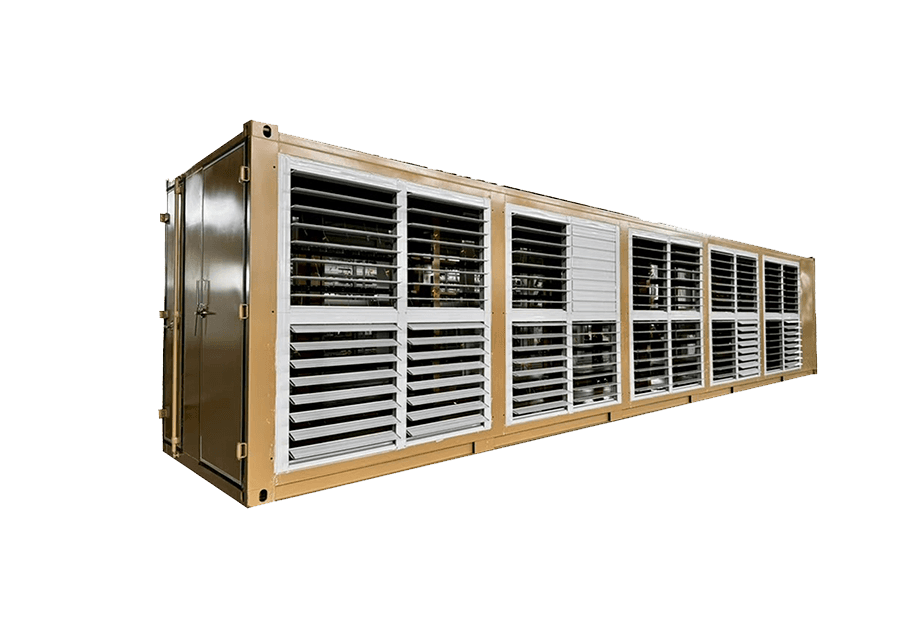

ARK5000 Pro – CSA Certification 40ft Mining Container
ARK5000 Pro is a CSA-certified 40ft Bitcoin mining container compliant with both U.S. and Canadian standards.
It meets Canada SPE-1000 as well as U.S. NEC and NFPA requirements, which are essential conditions for mining equipment insurance and regulatory approval in North America.
The container supports up to 315 Bitmain Antminer S21 units and is equipped with a 2500A frame main circuit breaker, delivering enhanced electrical protection and operational safety.
With its rigorous compliance, robust electrical architecture, and proven reliability, ARK5000 Pro is one of theframe main circuit breaker safest Bitcoin mining containers available today and a preferred choice for large-scale and institutional mining operators.
Can house
324 ASIC Miner
Total Capacity
MAX 1200kw
Cooling Fan
300000 cfm
OVERVIEW
| Item | Description |
|---|---|
| Container Size | 40ft Container or 11880*2200*2560mm Container |
| Cooling Type | Direct drive fan + water curtain |
| Running miners | 315 Antminer S19 series S21、280Antminer S21+ S21 XP 、315Whatsminer Avalon air series |
| Certification | UL certification、NEC、NFPA、CSA Certification（SPE-1000)、CCC、CE |
| Switchgear | 1*2500A frame main circuit breaker （LSIG) |
| Customization | Supported |
Cooling System
-
High-pressure axial fans with optimized airflow
-
Adjustable intake filtration
Power System
-
Intelligent Power Distribution Cabinet
-
Structure
-
Corten steel structure
-
Anti-corrosion industrial coating
- Supports front-to-back connection of multiple units, vertical stacking of two units, and a 5-year structural safety guarantee.
Delivery & Support
-
Factory pre-assembly & testing
-
Global shipping support
-
Installation guidance & documentation
-
Long-term technical support
Optional Upgrades
A1 – Air Filter
Metal mesh – durable, lowest cost, low filtration
PU foam – washable, balanced, cheap
MERV 8 – best filtration, highest cost
A2｜Sunshade Roof
Modular triangular roof extending 1.5 m on both intake and exhaust sides for insulation and weather protection.
A3｜Adjustable Blinds
Aluminum alloy adjustable blinds covering up to 90% of the intake side to optimize airflow direction.
A4｜Hot & Cold Isolation
Thermal isolation system preventing hot air recirculation and improving cooling efficiency.
A5｜Internal Ceiling
Creates a flat top and stable hot-air return path, eliminating airflow short-circuiting.
A6｜Stronger Fan
High-efficiency EC direct-drive fan with higher airflow and factory pre-installation.
A7 – Expandable Sliding Aisle (Drawer-Type)
Drawer-style expandable structure that allows the cold aisle or hot aisle to be widened as needed.The aisle width can be expanded up to 2.5 meters (≈ 8.2 ft), improving airflow organization and cooling efficiency.
A8 – Integrated support shed
The integrated support canopy can block sunlight and rain and snow, resist wind and rain, extend the service life of the water curtain, and the hinge structure design can be closed directly.
