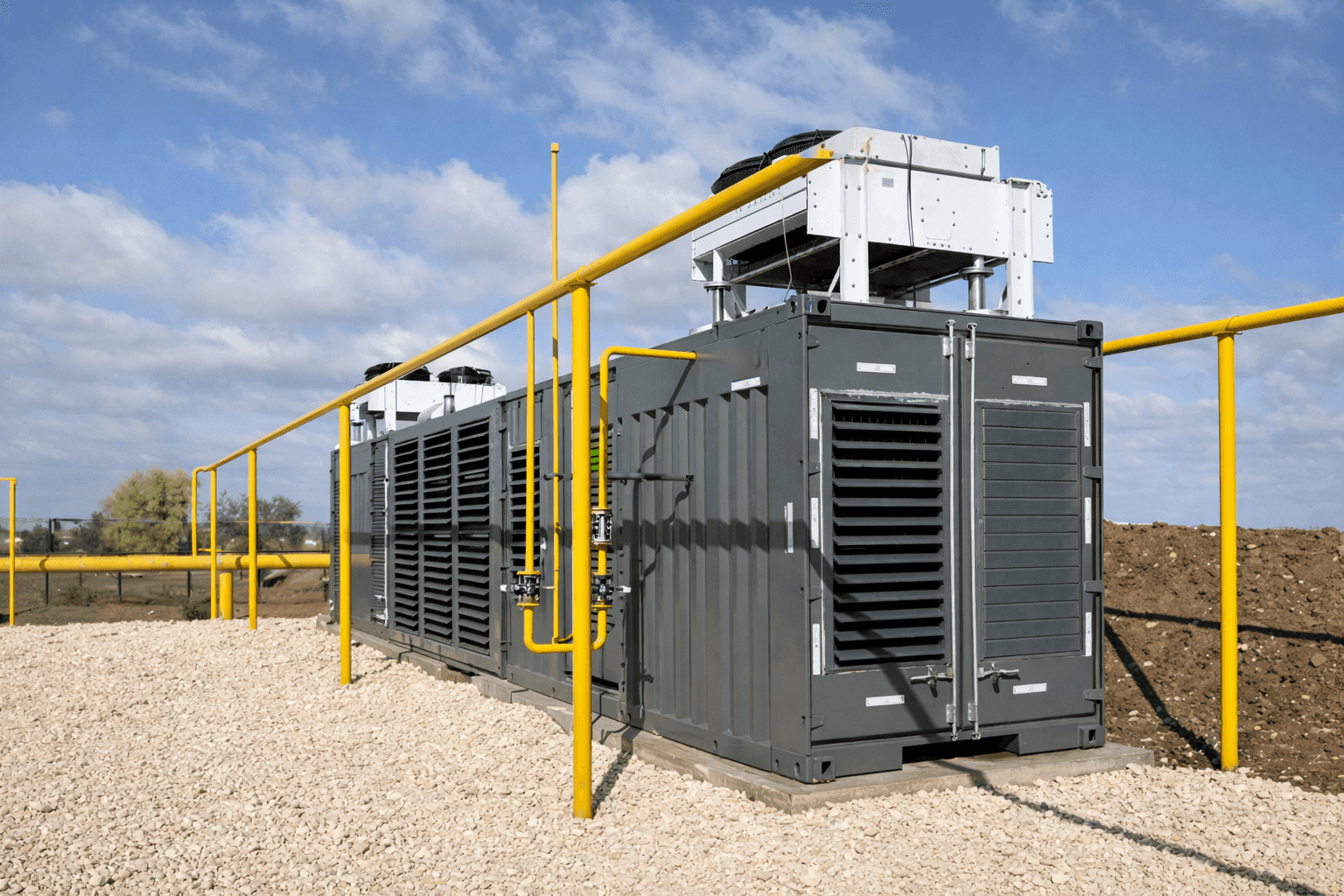

Gas500AIR – Air-Cooled Gas Mining Container
Can house
168 S21 Antminer
Total Capacity
MAX 500kw
Cooling Fan
Air
OVERVIEW
| Item | Specification |
|---|---|
| Product Name | Gas500AIR |
| Container Size | 45-ft Container 0r 40-ft Container CSC |
| Power Generation | 2 × 300 kW Natural Gas Generator Sets |
| Rated Mining Power | 500 kW |
| Miner Capacity | Up to 168 × Antminer S21 |
| Cooling System | Axial exhaust fans + high-efficiency air filtration |
| Fan Control | Variable-frequency (VFD) fan control |
| Deployment Mode | Plug-and-play, off-grid capable |
| Typical Applications | Oil & gas fields, flare gas projects, remote mining sites |
A compact, plug-and-play gas-powered mining container combining power generation, cooling, and mining infrastructure for fast, reliable deployment in gas-rich locations.
Core Advantages
All-in-One Integrated Design
Power generation, mining infrastructure, and cooling systems are fully integrated into a single 45-ft container, minimizing system complexity and on-site work.
Fast Deployment & Commissioning
Plug-and-play architecture significantly reduces installation and commissioning time, ideal for remote oilfields and distributed gas sites.
High Power Density Mining
Supports up to 168 Antminer S21 miners within a compact footprint, maximizing compute output per container.
Optimized Air-Cooling System
Axial fans combined with high-efficiency filtration media and variable-frequency fan control ensure stable operation and efficient heat dissipation.
Gas-to-Compute Efficiency
Designed specifically for natural gas utilization, enabling low-cost, off-grid Bitcoin mining in gas-rich environments.
Optional Upgrades
A1 – Metal Filter
Detachable W-shaped metal filter, suitable for year-round use. Prevents rain splashes and snow intrusion.
A2｜Sunshade Roof
Modular triangular roof extending 1.5 m on both intake and exhaust sides for insulation and weather protection.
A3｜Adjustable Blinds
Aluminum alloy adjustable blinds covering up to 90% of the intake side to optimize airflow direction.
A4｜Hot & Cold Isolation
Thermal isolation system preventing hot air recirculation and improving cooling efficiency.
A5｜Internal Ceiling
Creates a flat top and stable hot-air return path, eliminating airflow short-circuiting.
A6｜Stronger Fan
High-efficiency EC direct-drive fan with higher airflow and factory pre-installation.
A7 – Expandable Sliding Aisle (Drawer-Type)
Drawer-style expandable structure that allows the cold aisle or hot aisle to be widened as needed.The aisle width can be expanded up to 2.5 meters (≈ 8.2 ft), improving airflow organization and cooling efficiency.
