Supports remote shutdown, remote monitoring of power consumption, voltage, energy usage, and other electrical parameters.

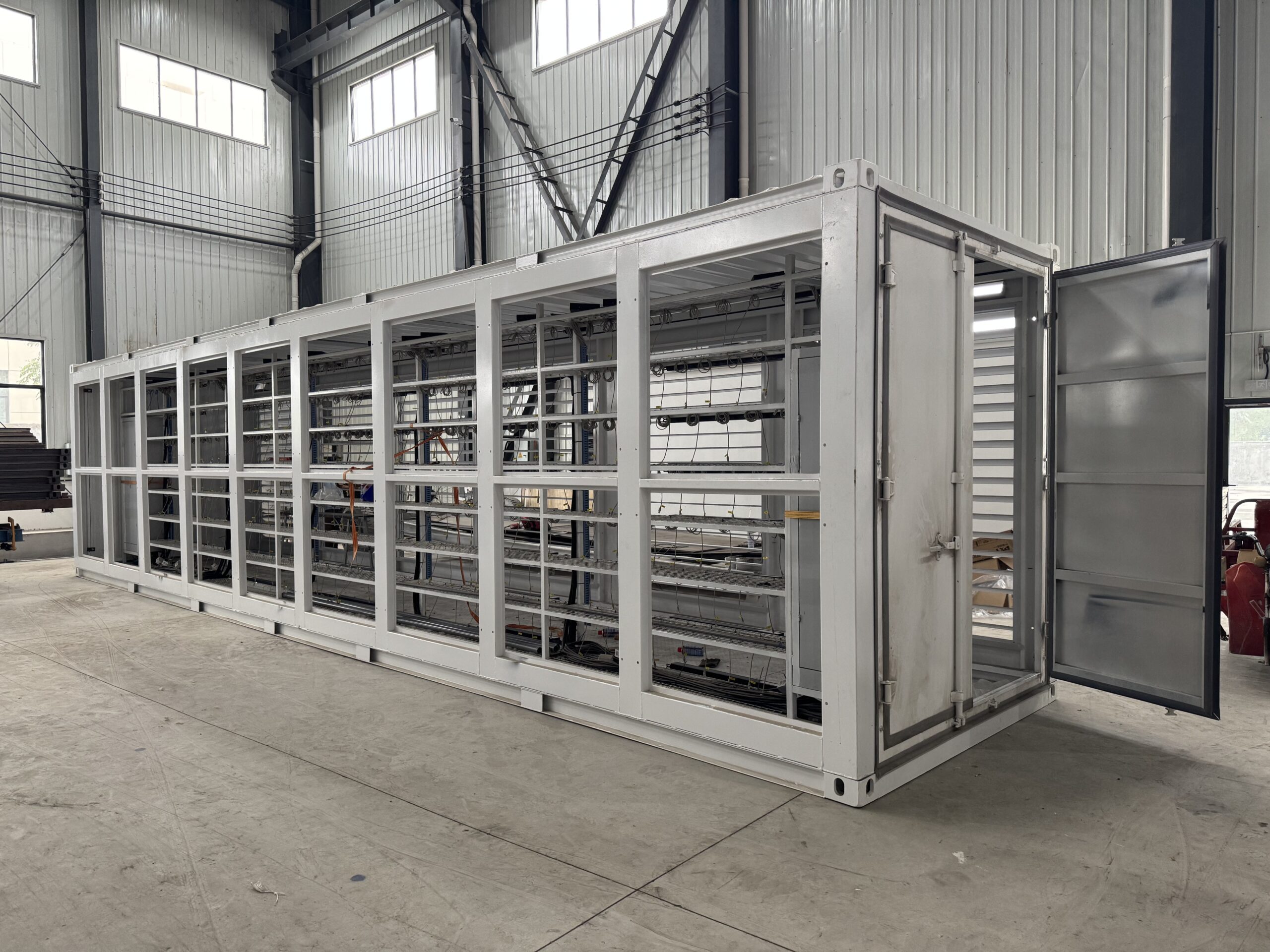

ARK4000 D – Modular Split-Unit Mining Container
Modular Split-Unit Mining Container is designed to significantly reduce transportation and deployment costs for large-scale mining projects.
By adopting a modular split-unit structure, it can reduce transportation costs by up to 50%.
For example, a 35 MW mining deployment requires only 20 units of 40HQ containers for transportation, making it one of the most logistics-efficient Bitcoin mining container solutions available today.
This solution is widely favored by customers in Russia, Belarus, Paraguay, and Ethiopia, where transportation efficiency and rapid deployment are critical.

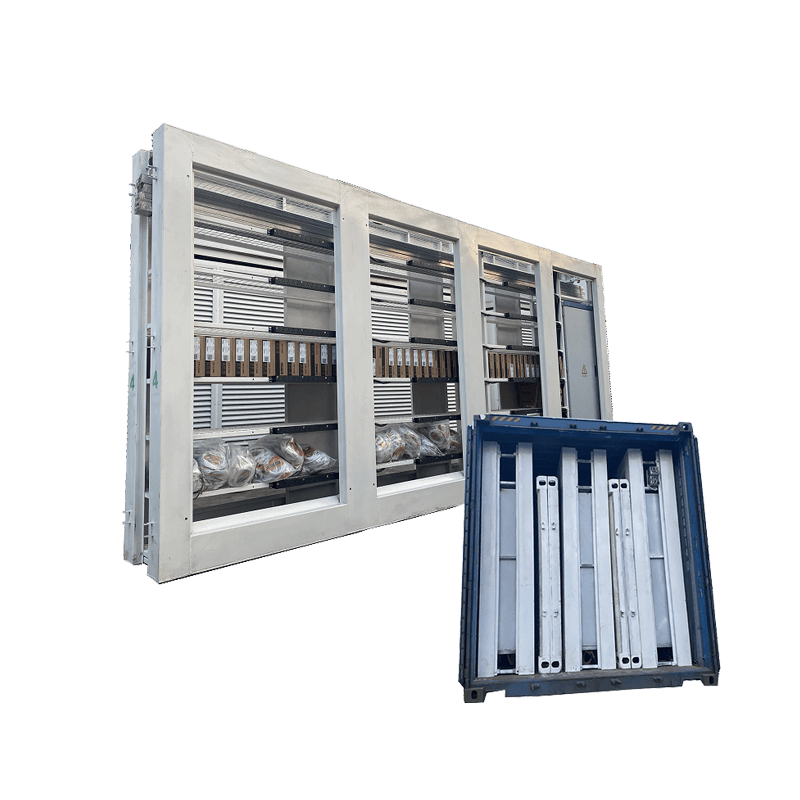

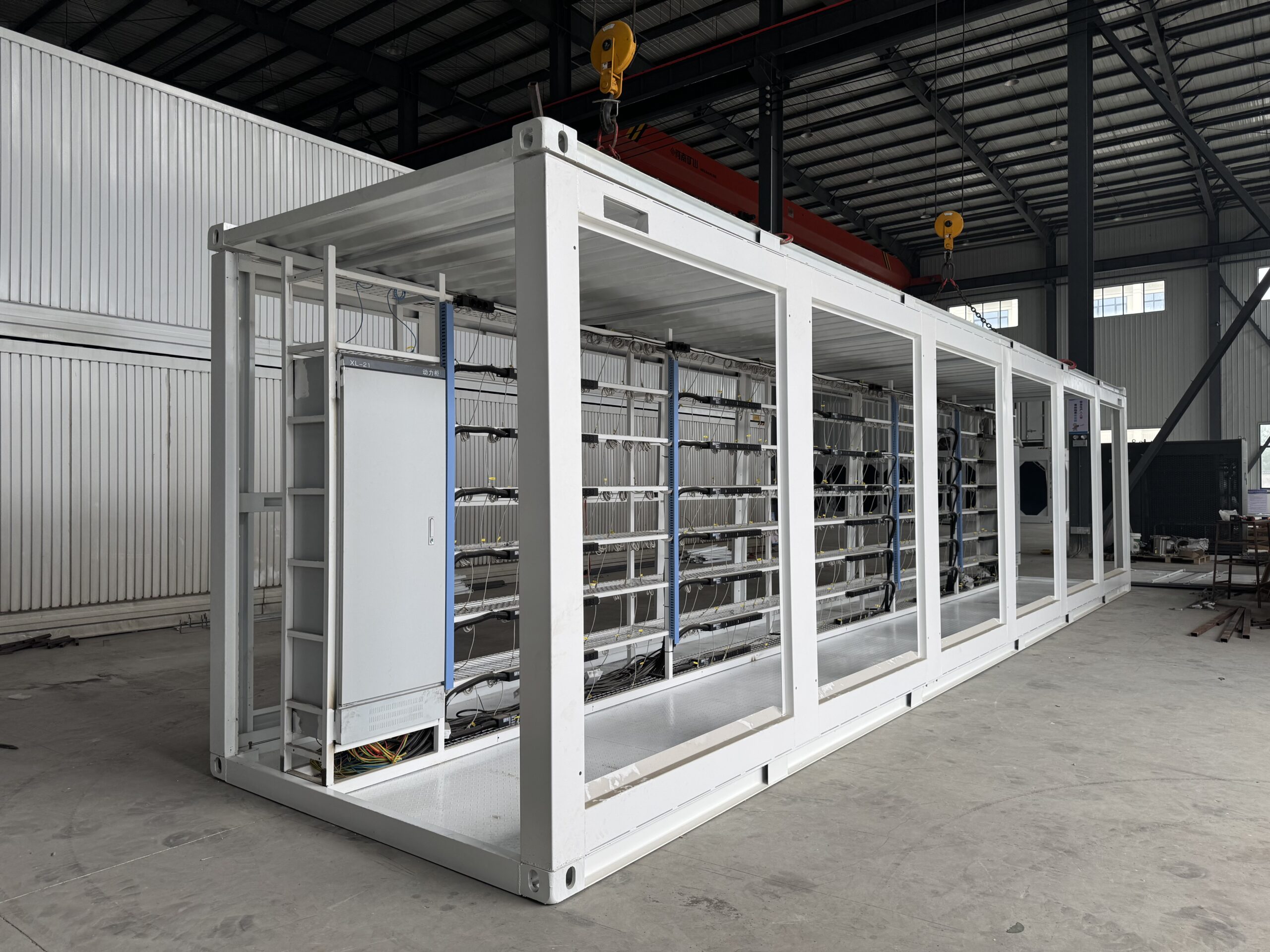

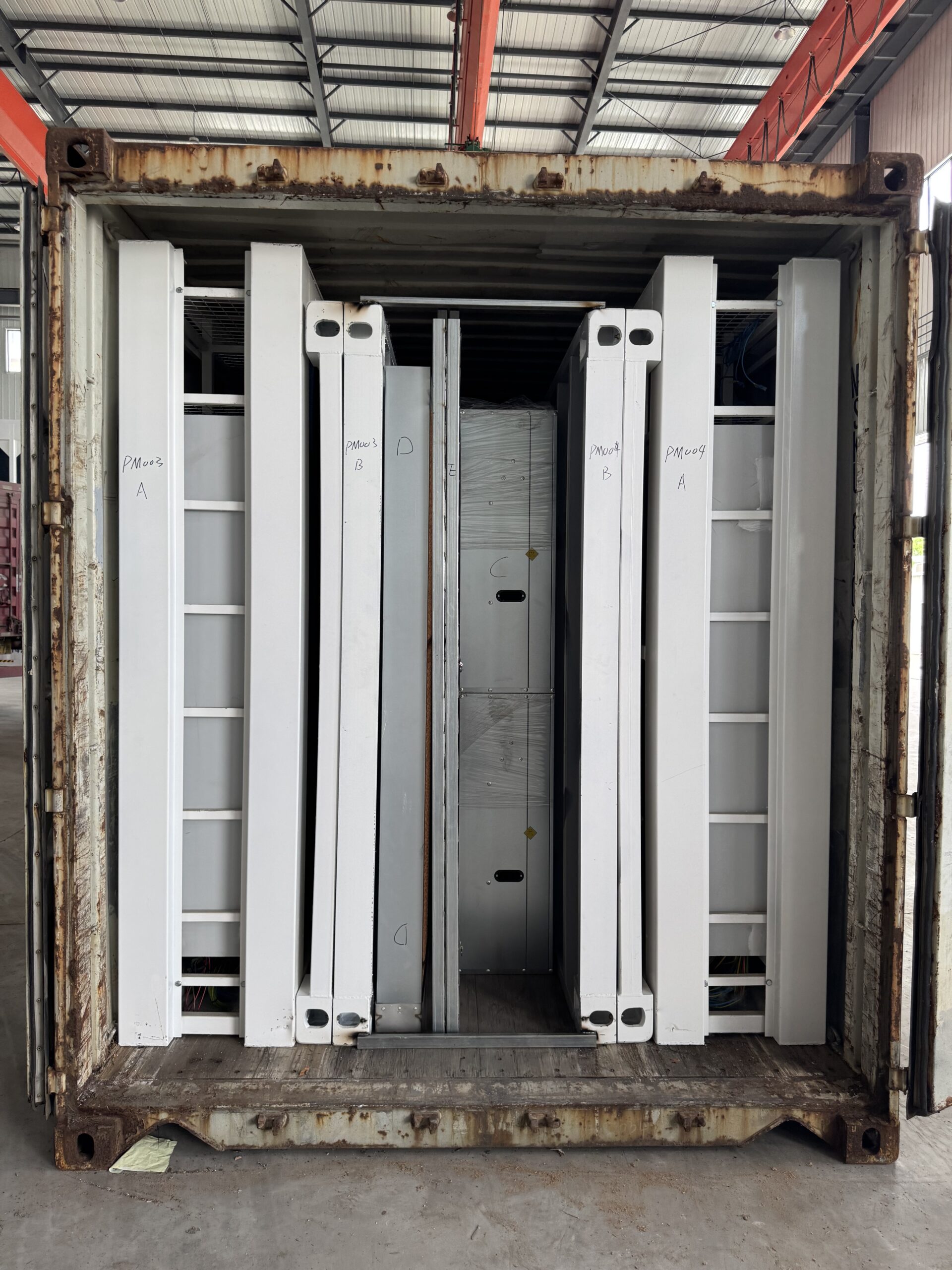

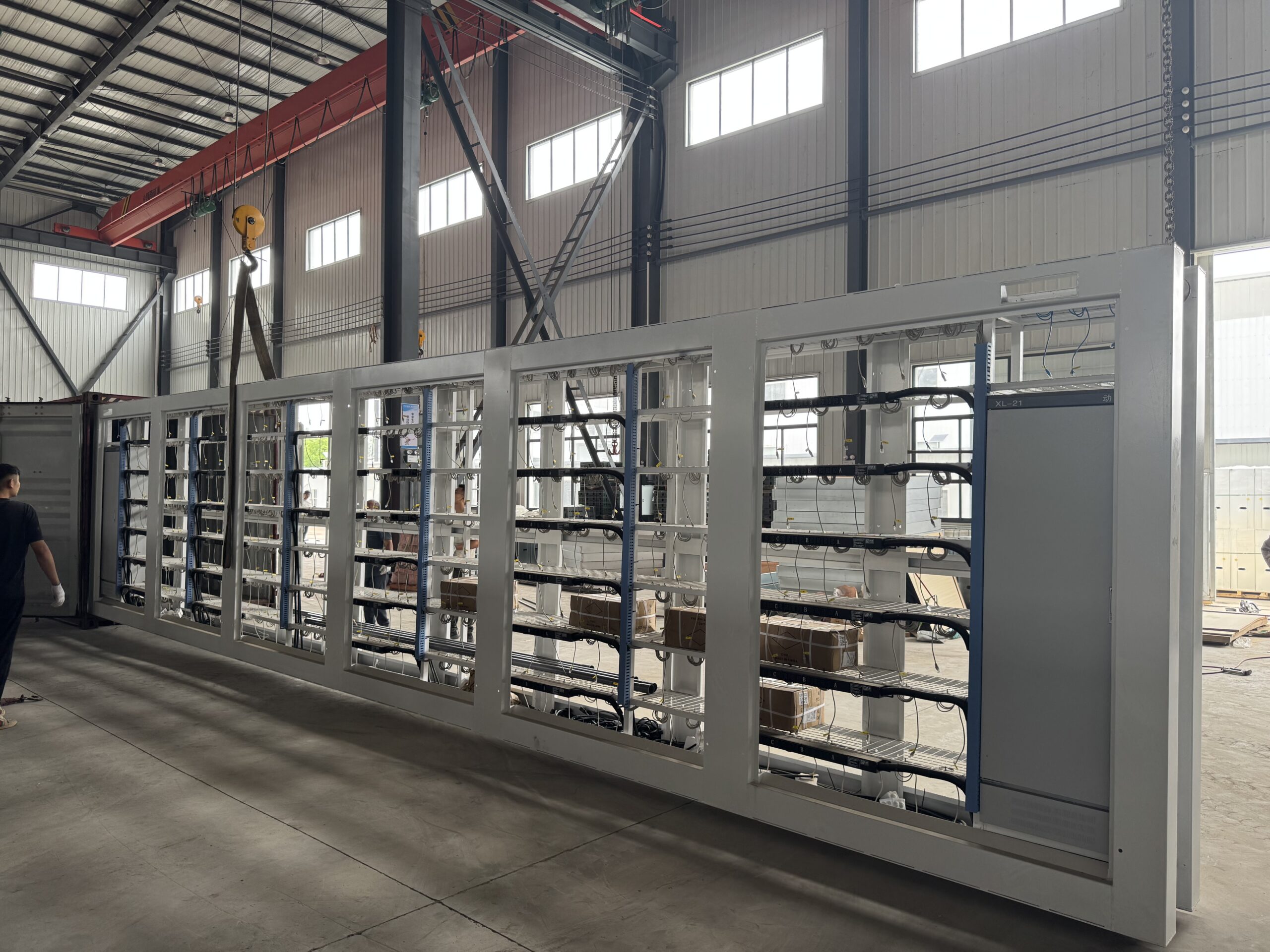

The container is divided into seven modular units, which are shipped separately and assembled on-site into a complete mining container.

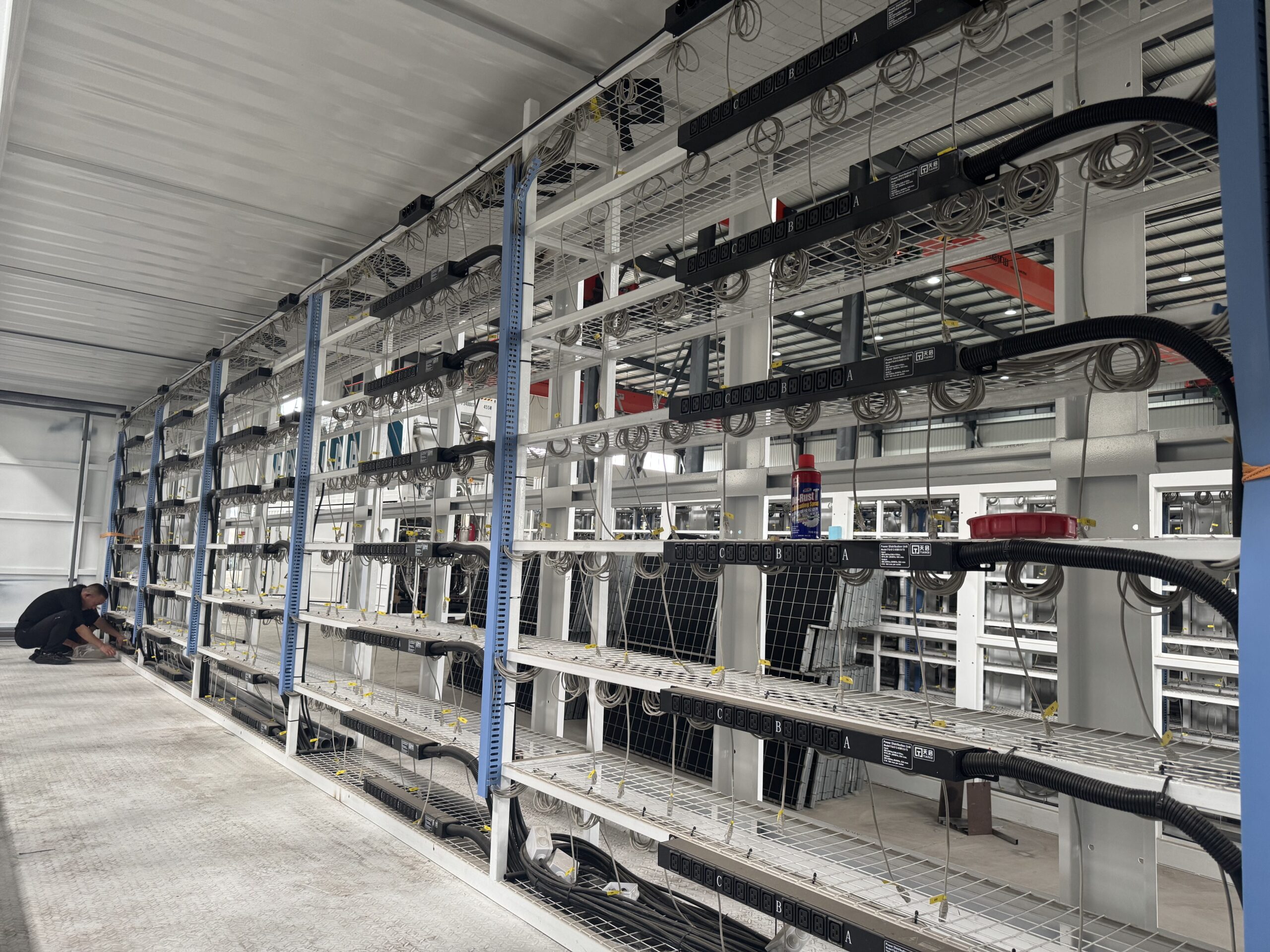

The electrical system is fully pre-installed and tested at the factory, requiring only structural assembly on-site, significantly reducing installation time and labor complexity.
We offer Modular Split-Unit Mining Containers in configurations supporting 320 miners and 162 miners, providing flexible options for different project scales.
Can house
320 ASIC Miner
Total Capacity
MAX 1250kw
Cooling Fan
300000 cfm
OVERVIEW
| Item | Description |
|---|---|
| Container Size | 11750*2550*2820mm & 5850*2550*2820mm（After assembly） |
| Cooling Type | Direct drive fan + water curtain |
| Running miners | 320&162 Antminer S19 series S21、285&147Antminer S21+ S21 XP 、320&189 Whatsminer Avalon air series |
| Certification | UL certification、CCC、CE |
| Switchgear | 2*1200A MCCB （LSIG) |
| Customization | Supported |
Cooling System
-
High-pressure axial fans with optimized airflow
-
Adjustable intake filtration
Power System
-
Intelligent Power Distribution Cabinet
-
Structure
-

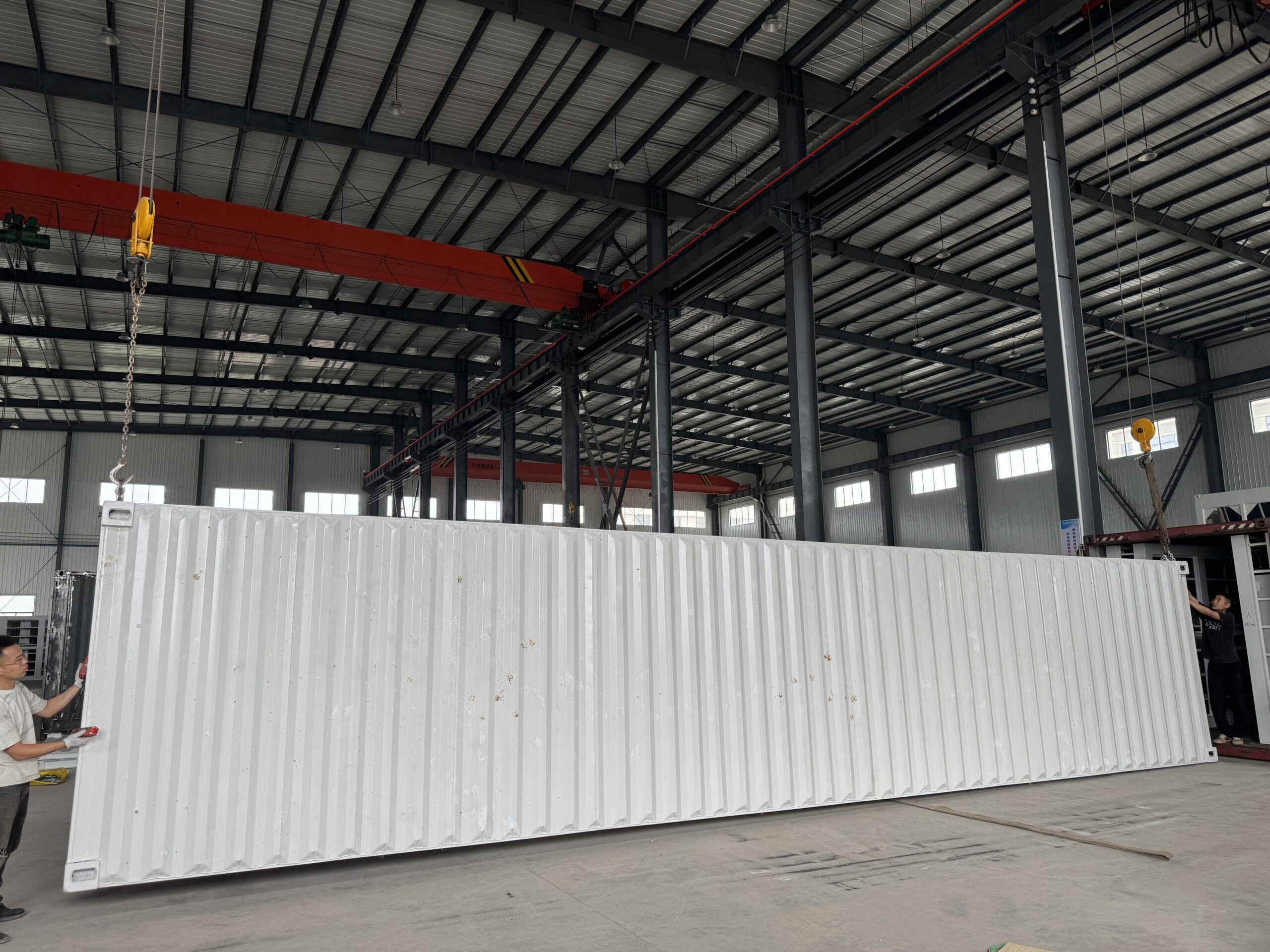

Corten steel structure
-
Anti-corrosion industrial coating
- Supports front-to-back connection of multiple units, vertical stacking of two units, and a 5-year structural safety guarantee.
Delivery & Support
-
Factory pre-assembly & testing
-
Global shipping support
-
Installation guidance & documentation
-
Long-term technical support
Optional Upgrades
A1 – Metal Filter
Detachable W-shaped metal filter, suitable for year-round use. Prevents rain splashes and snow intrusion.
A2｜Sunshade Roof
Modular triangular roof extending 1.5 m on both intake and exhaust sides for insulation and weather protection.

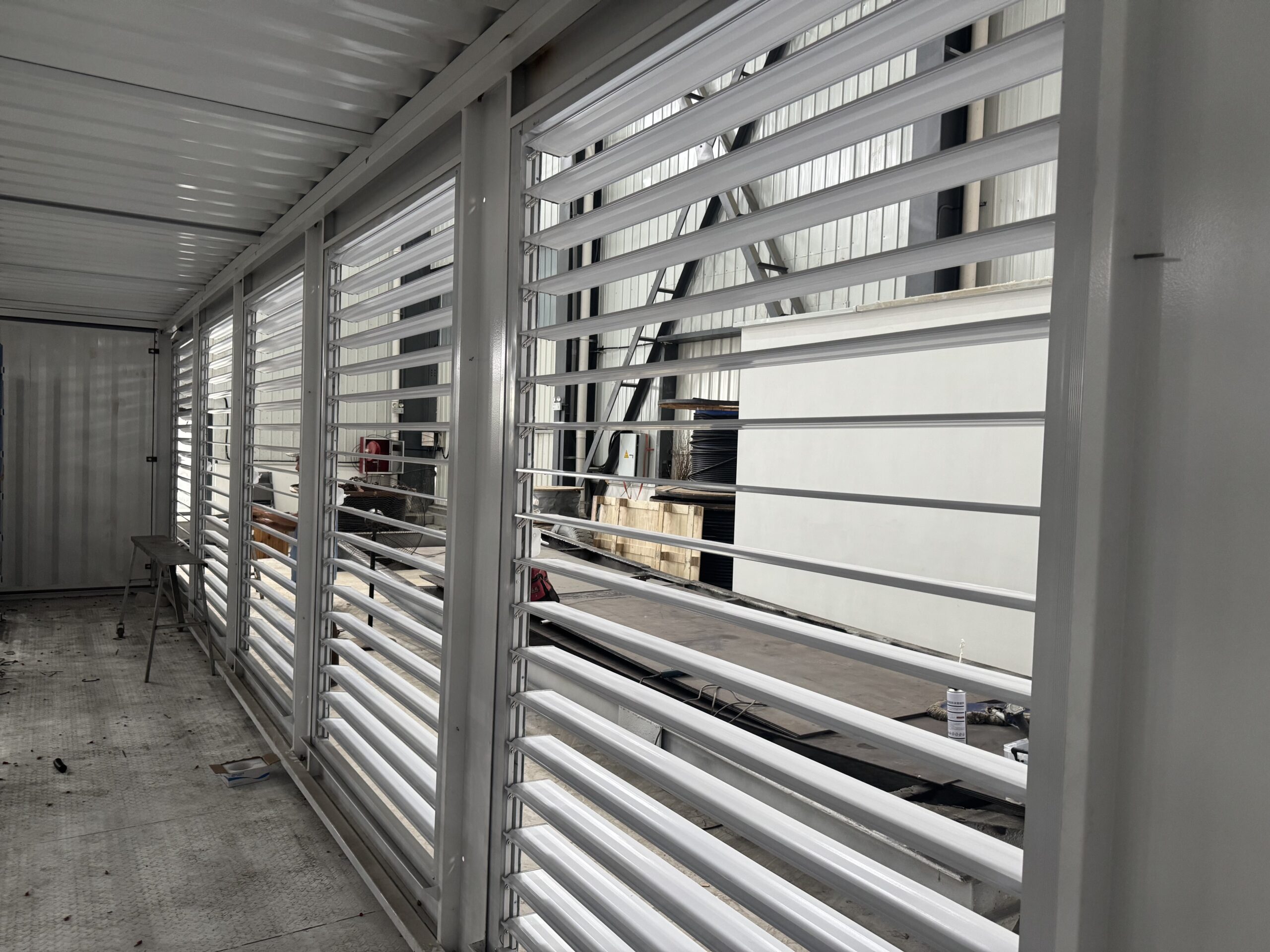

A3｜Adjustable Blinds
Aluminum alloy adjustable blinds covering up to 90% of the intake side to optimize airflow direction.
A4｜Hot & Cold Isolation
Thermal isolation system preventing hot air recirculation and improving cooling efficiency.
A5｜Internal Ceiling
Creates a flat top and stable hot-air return path, eliminating airflow short-circuiting.
A6｜Stronger Fan
High-efficiency EC direct-drive fan with higher airflow and factory pre-installation.
A7 – Expandable Sliding Aisle (Drawer-Type)
Drawer-style expandable structure that allows the cold aisle or hot aisle to be widened as needed.The aisle width can be expanded up to 2.5 meters (≈ 8.2 ft), improving airflow organization and cooling efficiency.
